Title: ADV7123KSTZ140 - High-Speed, Triple 10-Bit Video DAC for Multimedia Applications
Introduction:
Welcome to the product page of the ADV7123KSTZ140, a high-speed, triple 10-bit video digital-to-analog converter (DAC) designed for multimedia applications. The ADV7123KSTZ140 offers exceptional video performance and flexibility, enabling high-quality analog video signal generation in a wide range of multimedia systems. In this comprehensive overview, we will explore the features, specifications, and benefits of the ADV7123KSTZ140, highlighting why it is the preferred choice for video DAC solutions.
Product Features:
-
High-Speed Performance:
The ADV7123KSTZ140 is designed for high-speed video signal generation, supporting pixel rates of up to 140 MHz. This feature ensures accurate and smooth video playback, making it suitable for demanding multimedia applications such as video editing and production, broadcast equipment, and high-resolution display systems.
-
Triple 10-Bit DAC Configuration:
Featuring three independent 10-bit video DACs, the ADV7123KSTZ140 provides precise color reproduction and fine-level control for red, green, and blue (RGB) video signals. This configuration enables accurate color rendering and high-quality video output, making it ideal for applications that require vibrant and true-to-life visual representation.
-
On-Chip Voltage Reference:
The ADV7123KSTZ140 incorporates an on-chip voltage reference, eliminating the need for external reference components. This integration simplifies the design and reduces component count, saving valuable board space and enhancing system reliability.
-
Digital Interface Compatibility:
The ADV7123KSTZ140 supports various digital video interfaces, including parallel digital interfaces such as TTL, CMOS, and LVDS. This compatibility allows for seamless integration with a wide range of multimedia systems, simplifying the design process and enhancing versatility.
-
Flexible Power Supply Options:
With its flexible power supply options, the ADV7123KSTZ140 supports both single-supply and dual-supply voltage configurations. This versatility accommodates different system requirements, providing designers with flexibility in power supply design and integration.
Specifications:
| Parameter | Description |
| Resolution | 10-Bit |
| Number of Channels | 3 |
| Pixel Rate | Up to 140 MHz |
| Voltage Reference | On-Chip |
| Digital Interface | Parallel (TTL, CMOS, LVDS) |
| Power Supply | Single-Supply or Dual-Supply |
Applications:
The ADV7123KSTZ140 video DAC is ideal for a wide range of multimedia applications, including:
- Video Editing and Production
- Broadcast Equipment
- High-Resolution Display Systems
- Projection Systems
- Video Distribution Systems
- Medical Imaging
Conclusion:
In conclusion, the ADV7123KSTZ140 High-Speed, Triple 10-Bit Video DAC offers exceptional video performance and versatility for multimedia applications. With its high-speed operation, triple 10-bit DAC configuration, on-chip voltage reference, digital interface compatibility, and flexible power supply options, it provides designers with a reliable and flexible solution for high-quality analog video signal generation. The ADV7123KSTZ140 ensures accurate color reproduction, smooth video playback, and seamless integration in a wide range of multimedia systems. Explore the possibilities with the ADV7123KSTZ140 and elevate the visual experience of your multimedia designs with its advanced features and precise video performance.
Amplifier,Power Management ICs,Memory ICs,MCU,Microcontroller,Data Acquisition ICs,Embedded Processor,Clock Timing ICs,Interface ICs,Logic ICs,Radio Frequency ICs,Sensor,Discrete Semiconductor Products,Electronics Passive Components
Visit www.gselectro.com for more information
|
|

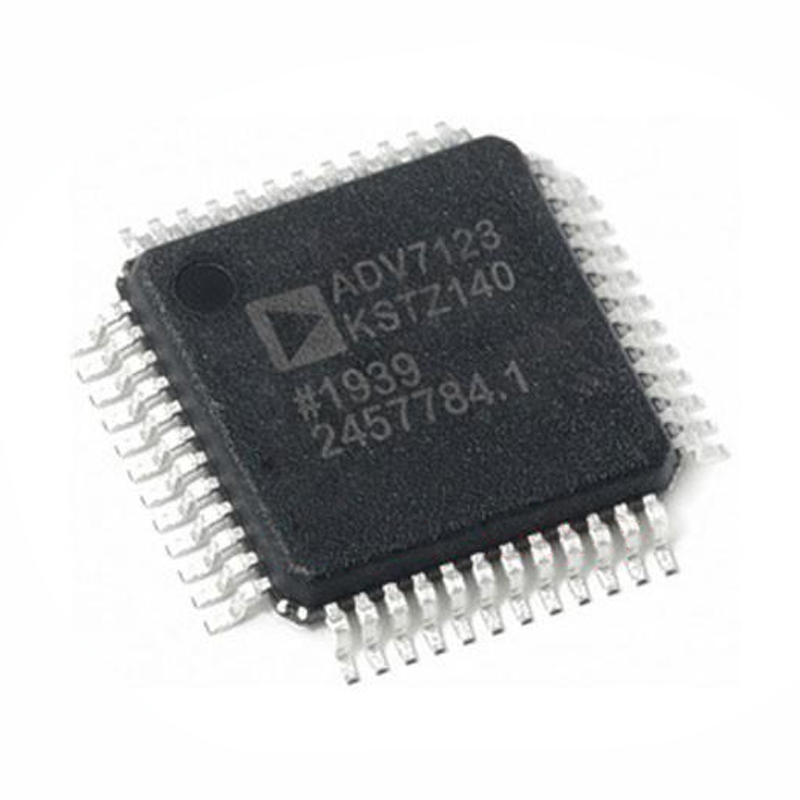

Adv7123kstz140 SACOH Best Quality LQFP-48 ADV7123KSTZ140 Images
|
